Project: Incline Screen Units

Client: Screen Systems

Quantity: Three

Use: Municipal solid/liquid waste

Destination: Hong Kong

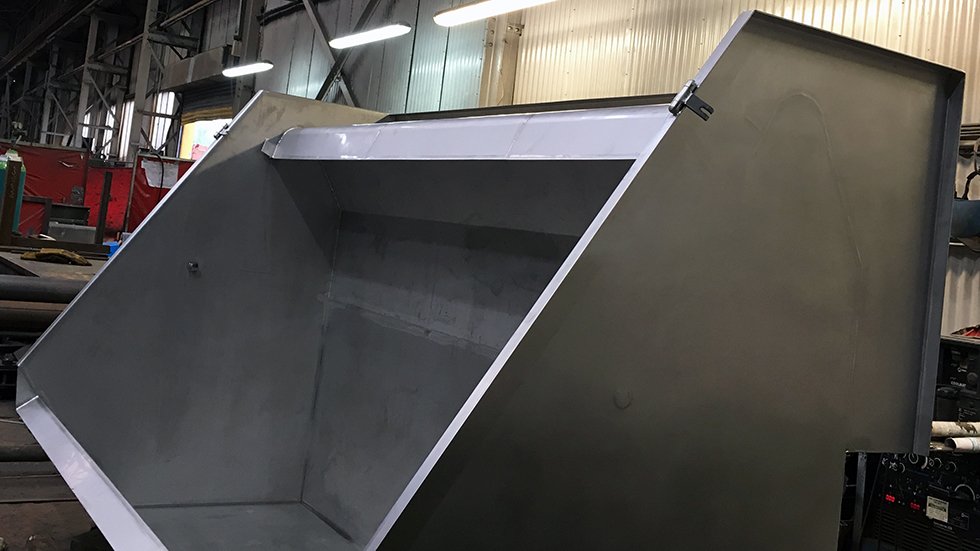

Water screen supply partners Screen Systems contracted Rilmac Fabrication to manufacture three large bespoke units to house screens for use by a customer based in Hong Kong. These are the first swivel screens manufactured for production and this functionality enables the end user to easily clean screens during use. The completed units are 3000mm x 1900mm x 1500mm with the main body fabricated from 3mm stainless steel with the ends made from 4mm stainless steel – EN10088-3:1:4401.

The units were fabricated to design drawings prepared by Rilmac Fabrication in liaison with Screen Systems and included stainless steel pipework for the introduction and removal of dirty water used in the cleaning process.

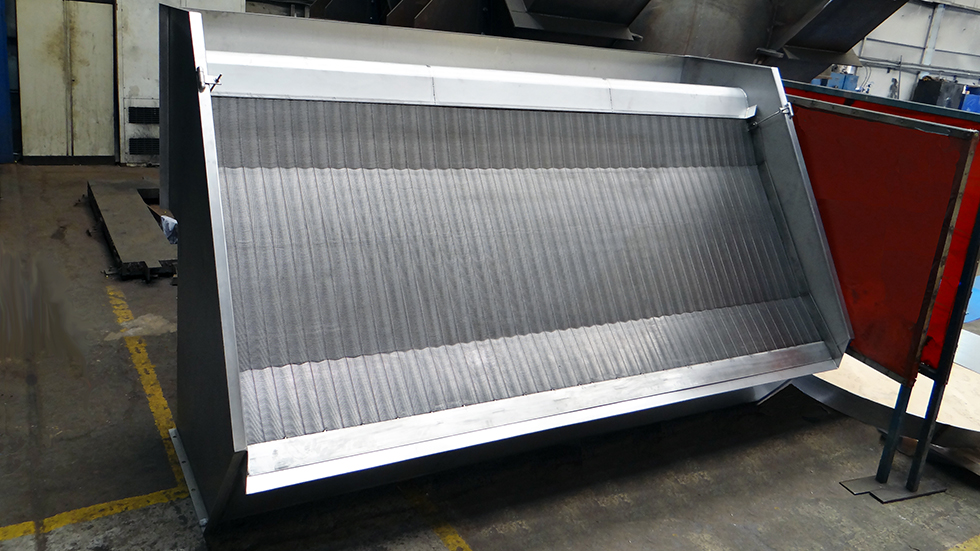

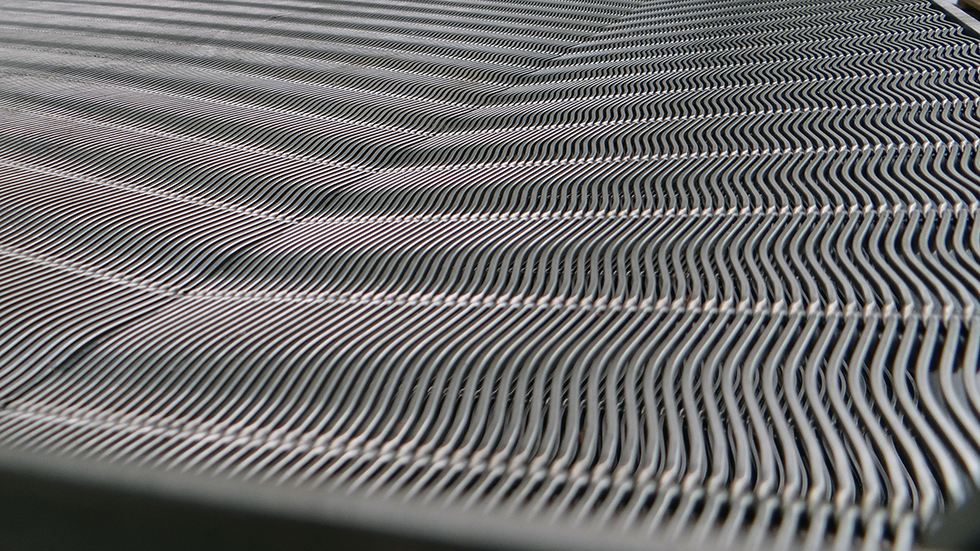

The water screens which were fitted in to the completed fabrications are single unit 3000mm SX Swivel Screens with a 1.5mm aperture, designed, manufactured and supplied by Screen Systems.

The final use for the units on installation in Hong Kong is the filtering of municipal solid / liquid waste. This project is one of several designed and built with Screen Systems.
